| Availability: |
Out of stock |

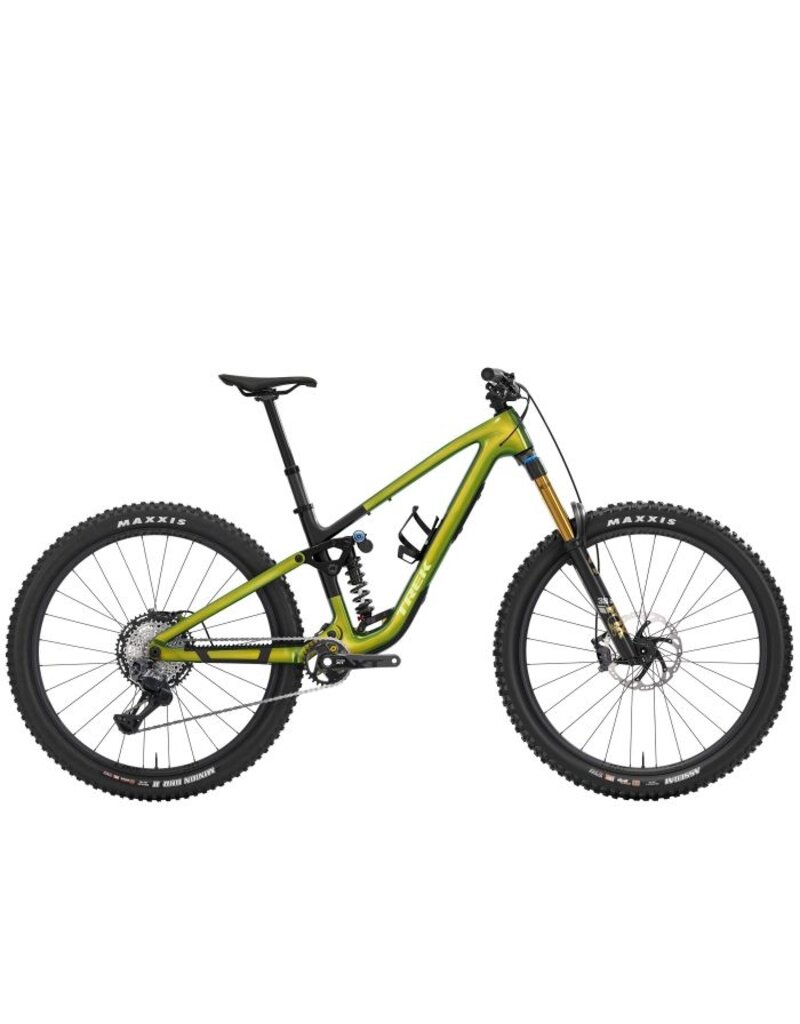

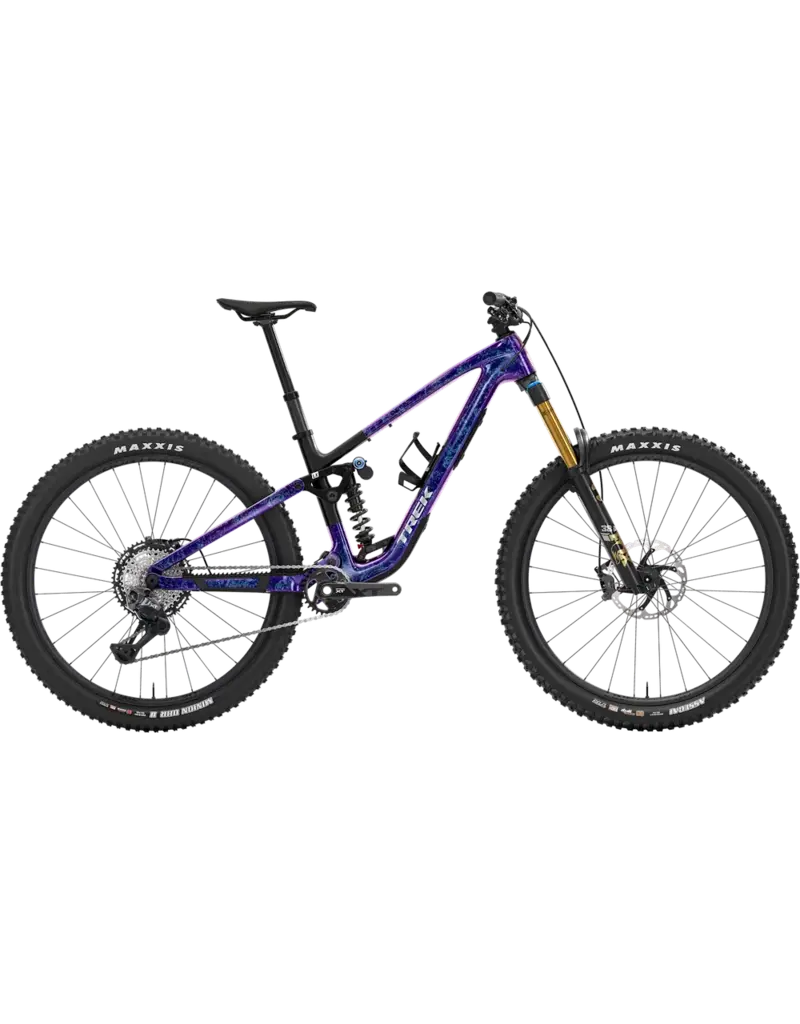

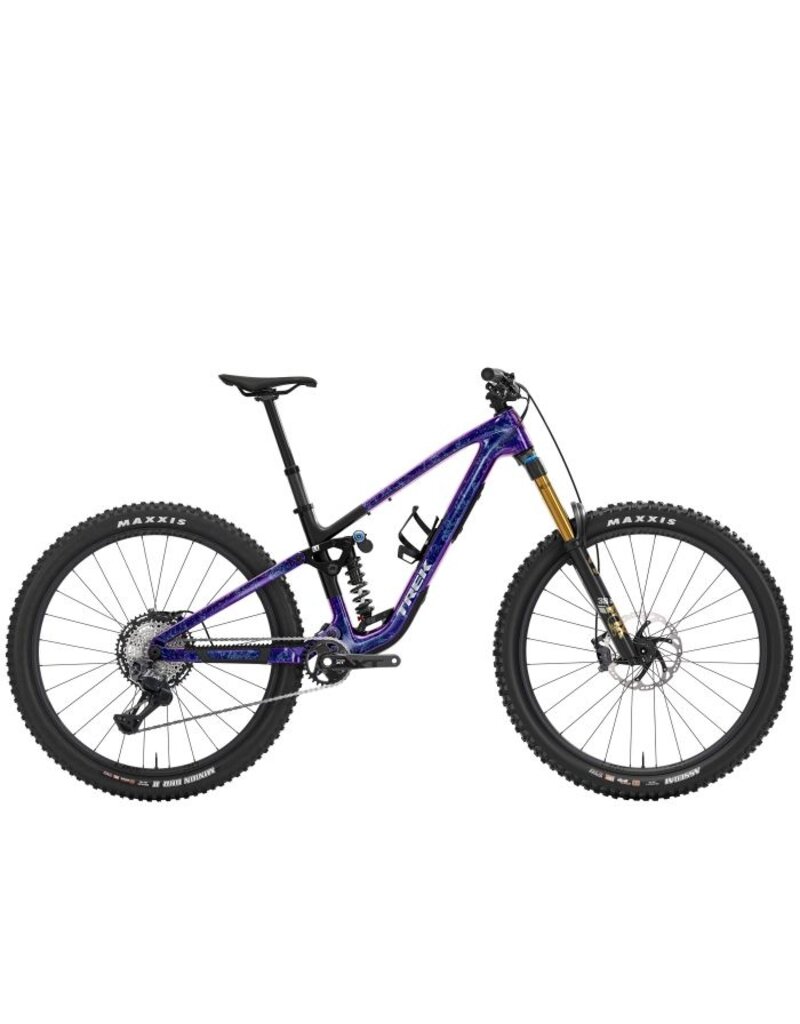

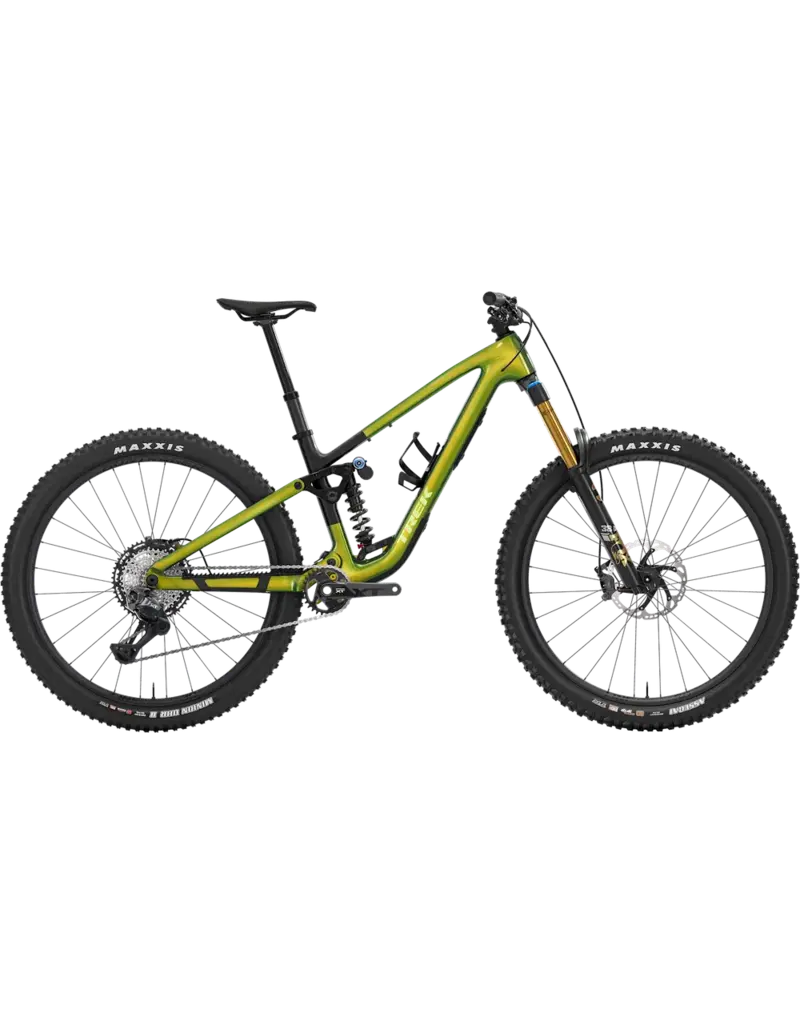

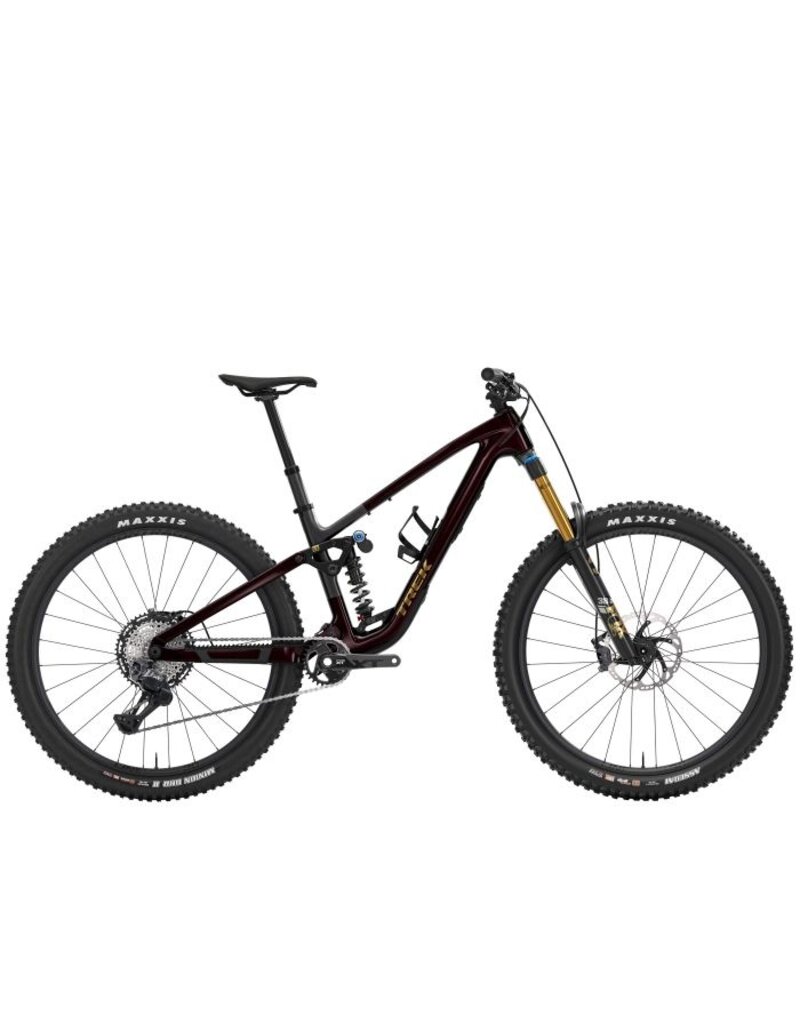

Fuel LX 9.8 XT Di2 is a rowdy carbon trail bike ready to slay steep descents and blast through wheel-gobbling terrain. Its OCLV Mountain Carbon frame partners with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for going all-out on the wiliest lines on the mountain. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
- Frame
-
OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
- Shock
-
- *Suspension part
-
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
Size: XXL
Fox steel coil spring, 500 lbs
- Wheel front
-
- Wheel rear
-
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29"
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL, XXL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL, XXL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
Shimano XT Di2 M8250, 12 speed
- Rear derailleur
-
Shimano XT M8250, long cage
- Crank
-
Shimano XT 8200, 30T, 55mm chainline, 170mm length
- Bottom bracket
-
- Cassette
-
Shimano XT M8200, 10-51, 12 speed
- Chain
-
Shimano Ultegra/XT M8100, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
- Grips
-
- Stem
-
- Brake
-
Shimano XT M8220 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL, XXL
Shimano RT86, 6-bolt, 180mm
Size: S, M, L, XL, XXL
Shimano RT86, 6-bolt, 203mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 15.97 kg / 35.21 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
