| Availability: |
Out of stock |

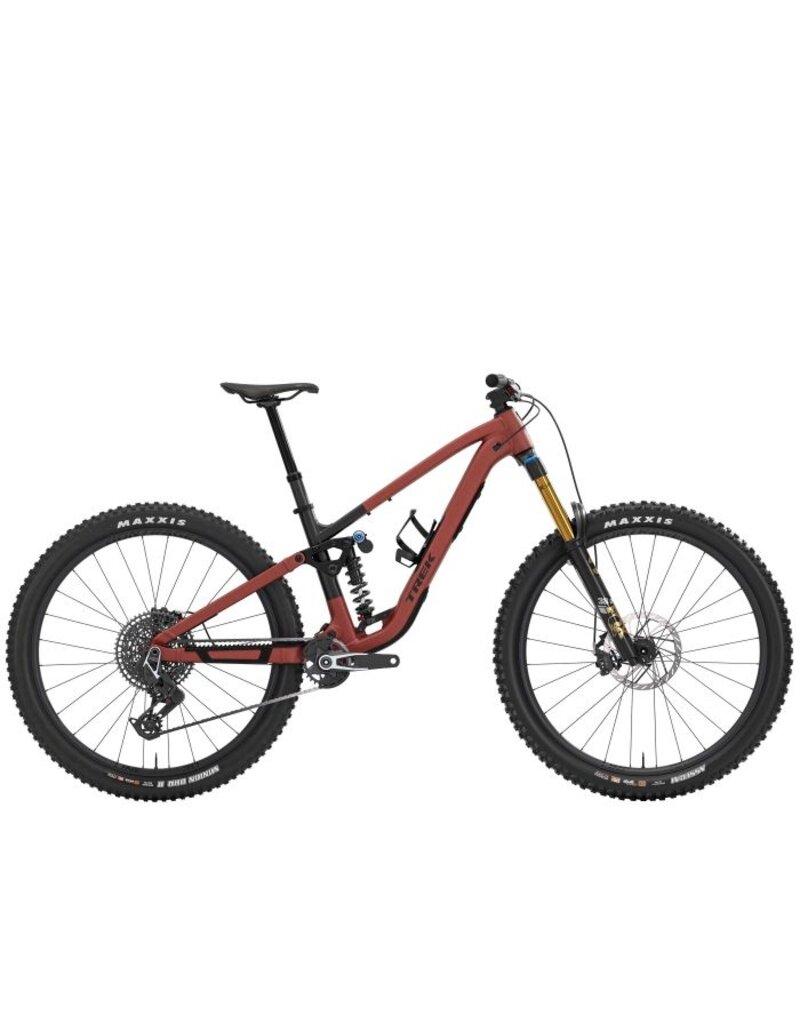

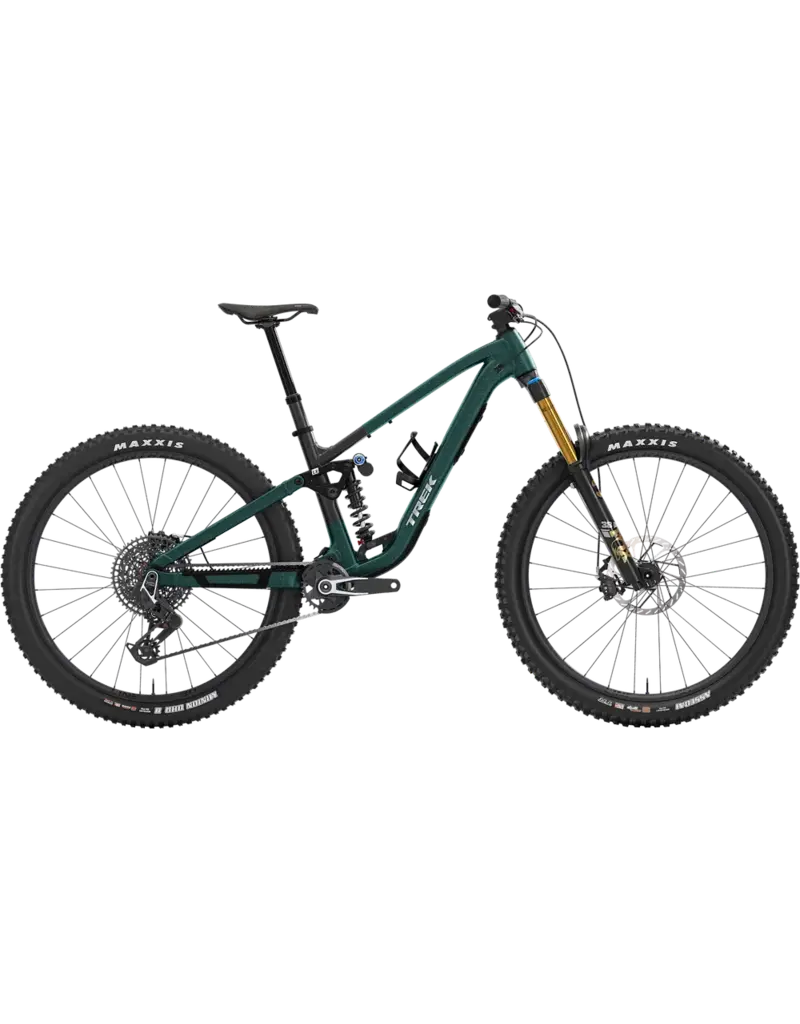

Fuel LX 9 X0 AXS is a hard-charging trail bike built for rowdy laps and hair-raising descents. It pairs an adaptable Alpha NEXT Platinum aluminum frame with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for rolling into steeper than steep lines packed with wheel-eating terrain. It comes ready to rip with a wireless SRAM X0 Eagle AXS transmission that keeps shifts smooth under load and SRAM Maven Silver 4-piston brakes for massive stopping power.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel
- Shock
-
- *Suspension part
-
Size: S
Fox steel coil spring, 250lbs
Size: M
Fox steel coil spring, 350lbs
Size: L
Fox steel coil spring, 400lbs
Size: XL
Fox steel coil spring, 450lbs
- Wheel front
-
- Wheel rear
-
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL
Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S, M, L, XL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- Crank
-
SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Brake
-
SRAM Maven Silver 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mm
Size: S, M, L, XL
SRAM HS2, 6-bolt, 180mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 17.78 kg / 39.2 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
