| Availability: |
Out of stock |

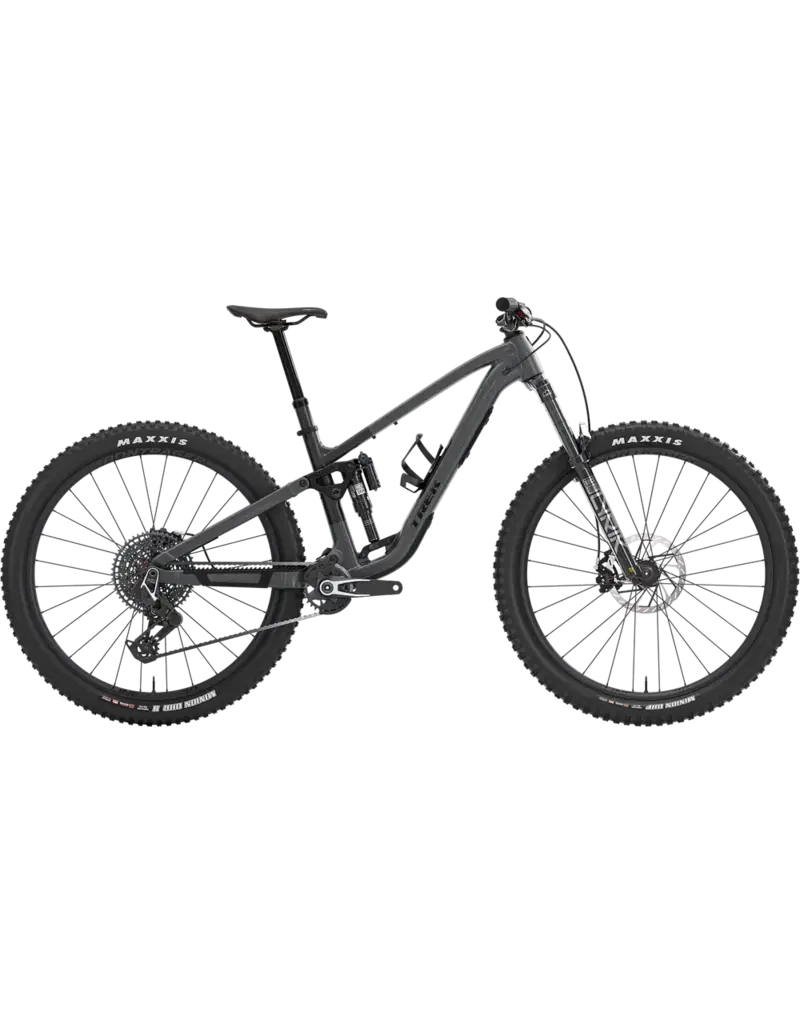

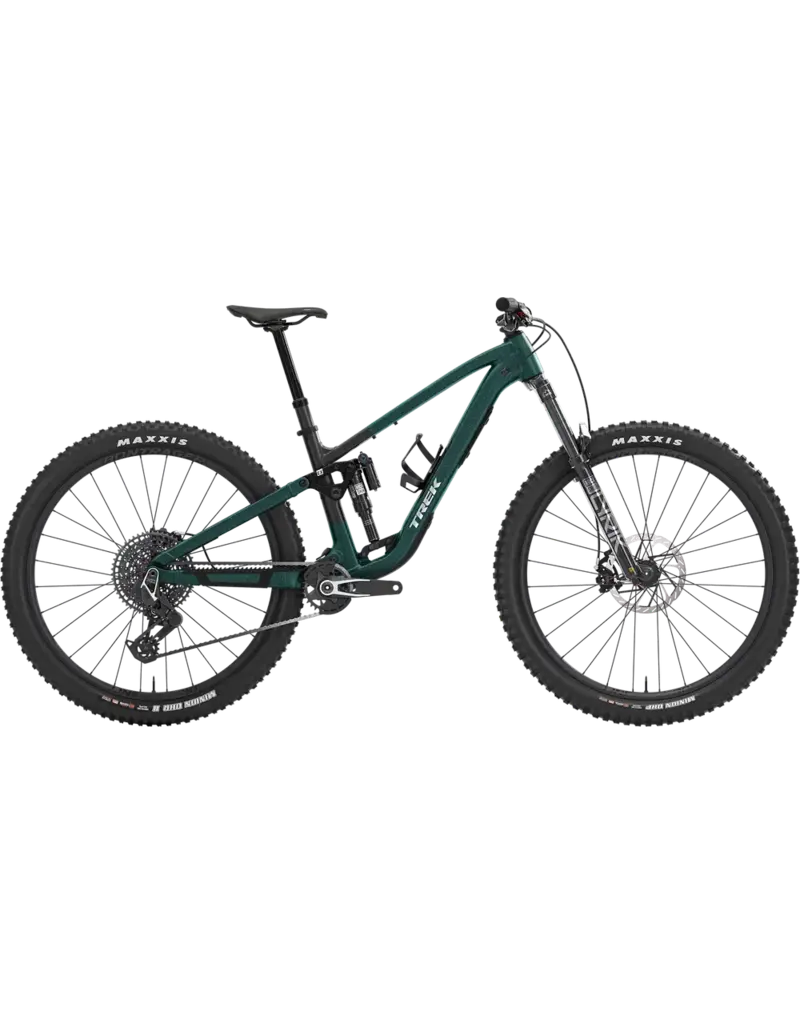

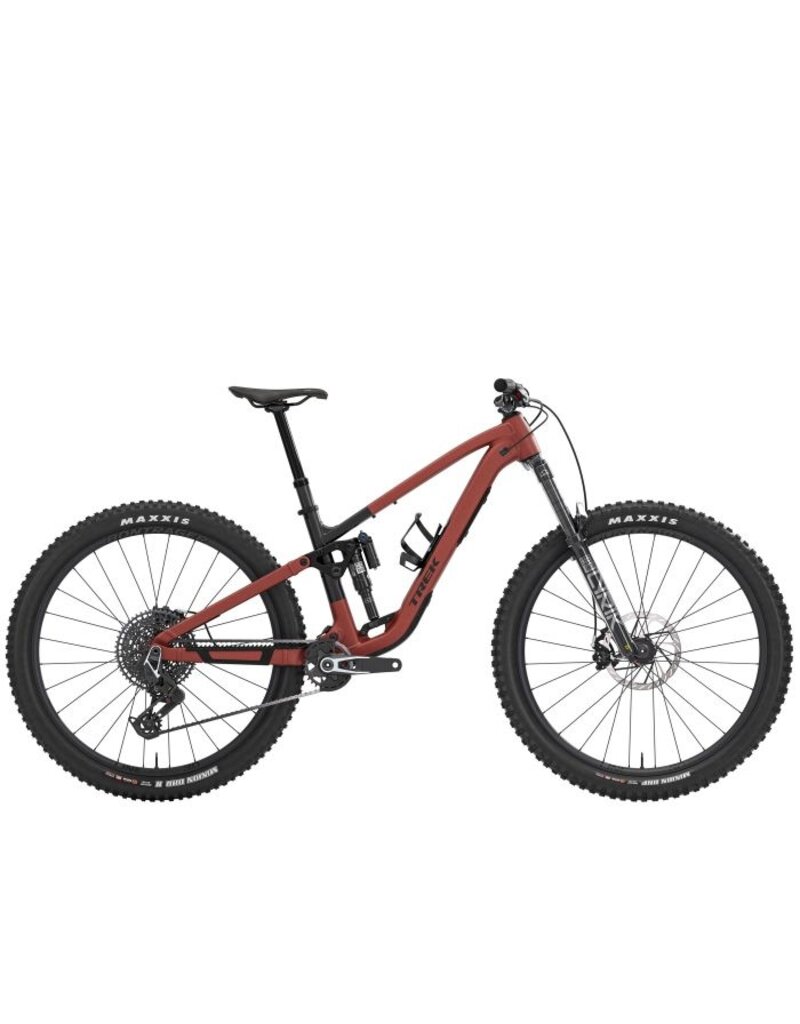

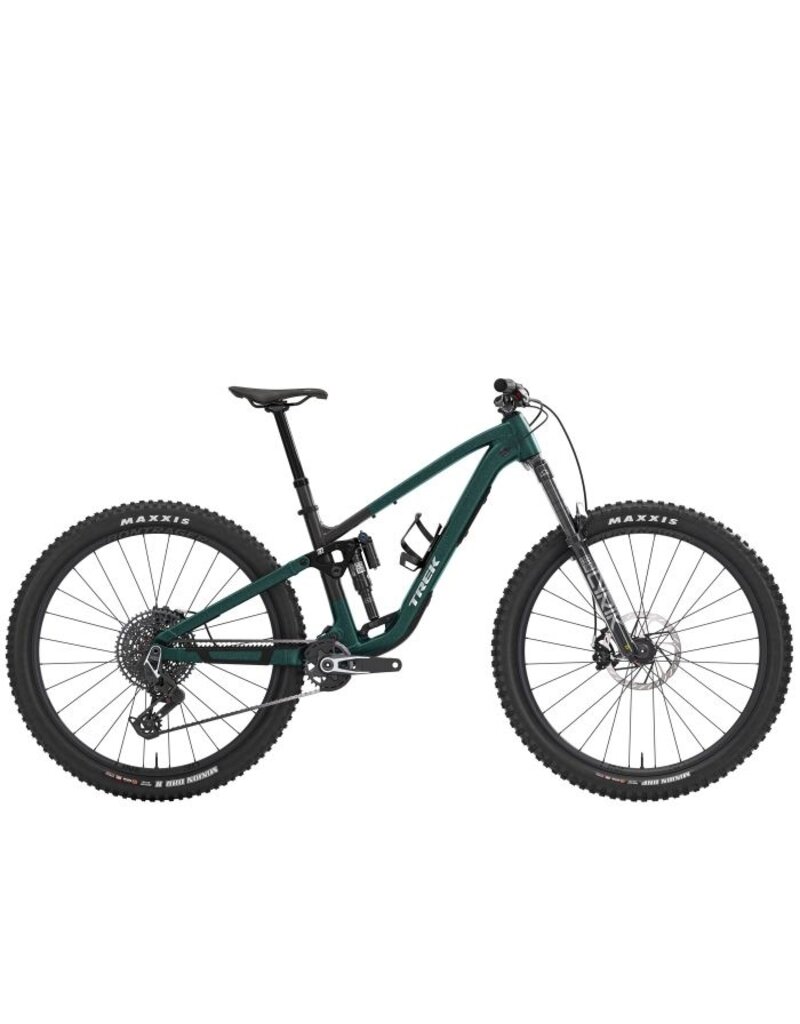

Fuel EX 9 X0 AXS is a confident trail bike made to rip into just about anything. It starts with an Alpha NEXT Platinum aluminum frame with a RockShox Ultimate suspension package (145mm rear, 150mm front) that make quick work of tech and flow alike. A SRAM X0 Eagle AXS transmission delivers precision wireless shifting that stays smooth under load, while SRAM Maven Silver 4-piston brakes give you the modulation and stopping power you need when things get hairy.
- Frame
-
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
- Fork
-
RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
- Shock
-
RockShox Deluxe Ultimate RC2T, 205mm x 60mm
- Wheel front
-
- *Wheel rear
-
- Skewer rear
-
- *Tire
-
Size: S, M, L, XL
Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Size: S
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
Size: M, L, XL
Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
- Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tire size
- Frame: 29x2.50", Fork: See manufacturer
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
- Rear derailleur
-
SRAM X0 Eagle AXS, T-Type
- Crank
-
SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73mm, BSA threaded
- Cassette
-
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
- Chain
-
SRAM X0 Eagle, T-Type, 12 speed
- Max chainring size
- 1x: 34T round, 32T oval, min 30T, 32T oval
- Saddle
-
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
- Grips
-
- Stem
-
- Brake
-
SRAM Maven Silver 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mm
Size: S, M, L, XL
SRAM HS2, 6-bolt, 180mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 17.08 kg / 37.66 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
