| Availability: | Out of stock |

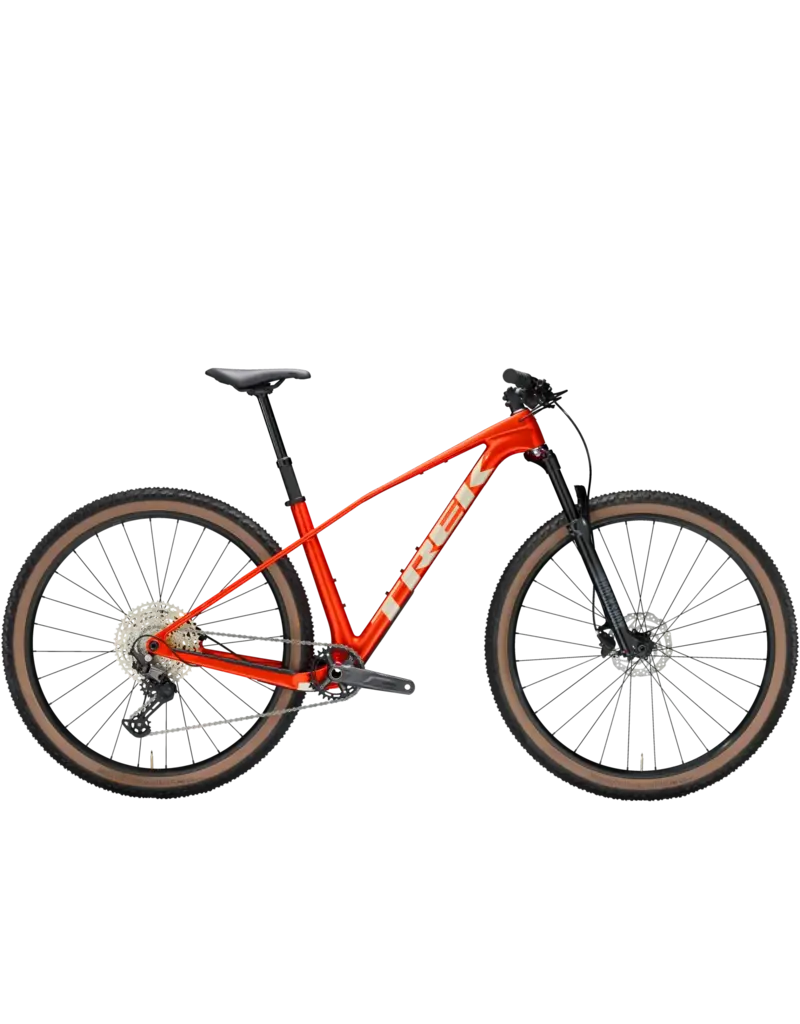

Procaliber 9.5 Gen 3 is a race-ready carbon hardtail ready to rocket up singletrack climbs. It packs in IsoBow vibration-damping tech to smooth out the chatter and aggressive XC geometry that's confident, capable, and nimble.
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post mount brake, Boost148 |
|---|---|
| Fork | RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
| Max compatible fork travel | 120mm |
| Hub front | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
|---|---|
| Hub rear | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| *Tire | Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40'' |
| Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20'' |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.40", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| *Crank | Size: S, M, ML Shimano MT512, 32T, 55mm chainline, 170mm |
| Size: L, XL Shimano MT512, 32T, 55mm chainline, 175mm |
|
| Bottom bracket | Shimano MT500, 92mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 1x: 38T |
| Saddle | Verse Short, chromoly rails, 145mm width |
|---|---|
| *Seatpost | Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length |
| Size: M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length |
|
| Size: XL Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 4500mm length |
|
| *Handlebar | Size: S Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width |
| Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: S Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
| Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
| Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: S, M, ML, L, XL Shimano RT10, CenterLock, 160 mm |
| Size: L, XL Shimano RT10, CenterLock, 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
| Weight | M - 12.13 kg / 26.75 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
