Availability: | Out of stock |

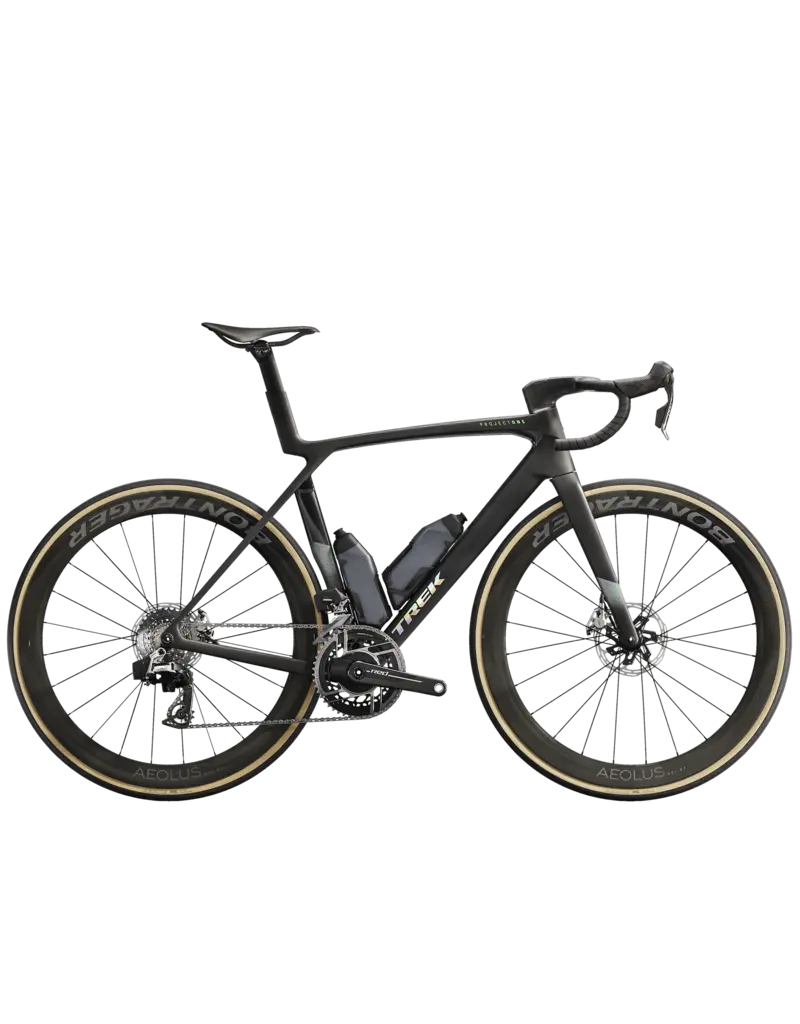

Madone SLR 9 AXS Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It's crafted from our highest-level 900 Series OCLV Carbon that's not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. Lightweight IsoFlow frame technology means Madone doesn't sacrifice comfort for speed. This build comes ready to win with a top-level SRAM RED AXS drivetrain with a power meter, carbon wheels, a Trek Aero RSL one-piece carbon bar/stem, and RSL Aero Bottles and Cages for more drag reduction.
Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
---|---|
Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
Weight | ML - 7.00 kg / 15.44 lbs (with TLR sealant, no tubes, no bottles/cages) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
Battery | SRAM eTap battery pack (with charger) |
---|
Shifter | SRAM RED AXS E1 |
---|---|
Front derailleur | SRAM RED AXS E1, braze-on |
Rear derailleur | SRAM RED AXS E1, 36T max cog |
*Crank | Size: XS, S SRAM RED AXS E1, power meter, 48/35, DUB, 165mm length |
Size: M SRAM RED AXS E1, power meter, 48/35, DUB, 170mm length |
|
Size: ML, L SRAM RED AXS E1, power meter, 48/35, DUB, 172.5mm length |
|
Size: XL SRAM RED AXS E1, power meter, 48/35, DUB, 175mm length |
|
Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
Cassette | SRAM RED XG-1290 E1, 10-33, 12 speed |
Chain | SRAM RED E1,12 speed |
Max chainring size | 1x: 54T, 2x: 56/43 |
Wheel front | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle |
---|---|
Wheel rear | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle |
Skewer front | Bontrager Switch chamfered thru axle, removable lever |
Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
*Tire | Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm |
Size: XS, S, M, ML, L, XL Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm |
|
Tire part | Bontrager TLR sealant, 180 ml/6 oz |
Max tire size | 32mm (as measured, see manual for details) |
