| Availability: | Out of stock |

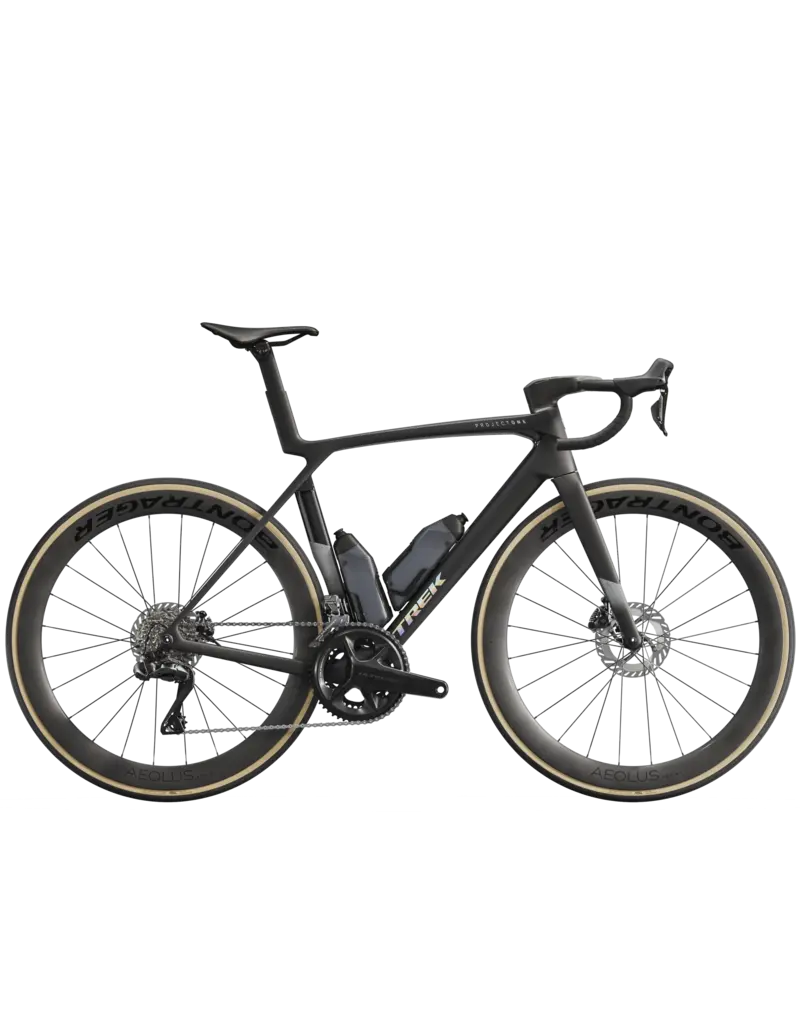

Madone SLR 7 Gen 8 is an ultra-aero and featherlight road bike that's built to race. Its 900 Series OCLV Carbon frame is not only aerodynamic, but also ultra-light for flying up climbs. Lightweight IsoFlow frame technology means that Madone doesn't sacrifice comfort for speed. To give you every aero advantage, Madone SLR comes with RSL Aero Bottles and Cages that further reduce drag. This build comes ready to win with a Shimano Ultegra Di2 groupset, carbon wheels, and a Trek Aero RSL one-piece carbon bar/stem.
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
|---|---|
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 7.31 kg / 16.12 lbs (with TLR sealant, no tubes, no bottles/cages) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable included |
| Shifter | Shimano Ultegra R8170 Di2, 12 speed |
|---|---|
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *Crank | Size: XS, S Shimano Ultegra R8100, 52/36, 165mm length |
| Size: M Shimano Ultegra R8100, 52/36, 170mm length |
|
| Size: ML, L Shimano Ultegra R8100, 52/36, 172.5mm length |
|
| Size: XL Shimano Ultegra R8100, 52/36, 175mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-30, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Max chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| *Tire | Size: XS, S, M, ML, L, XL Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm |
| Size: XS, S, M, ML, L, XL Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tire size | 32mm (as measured, see manual for details) |
