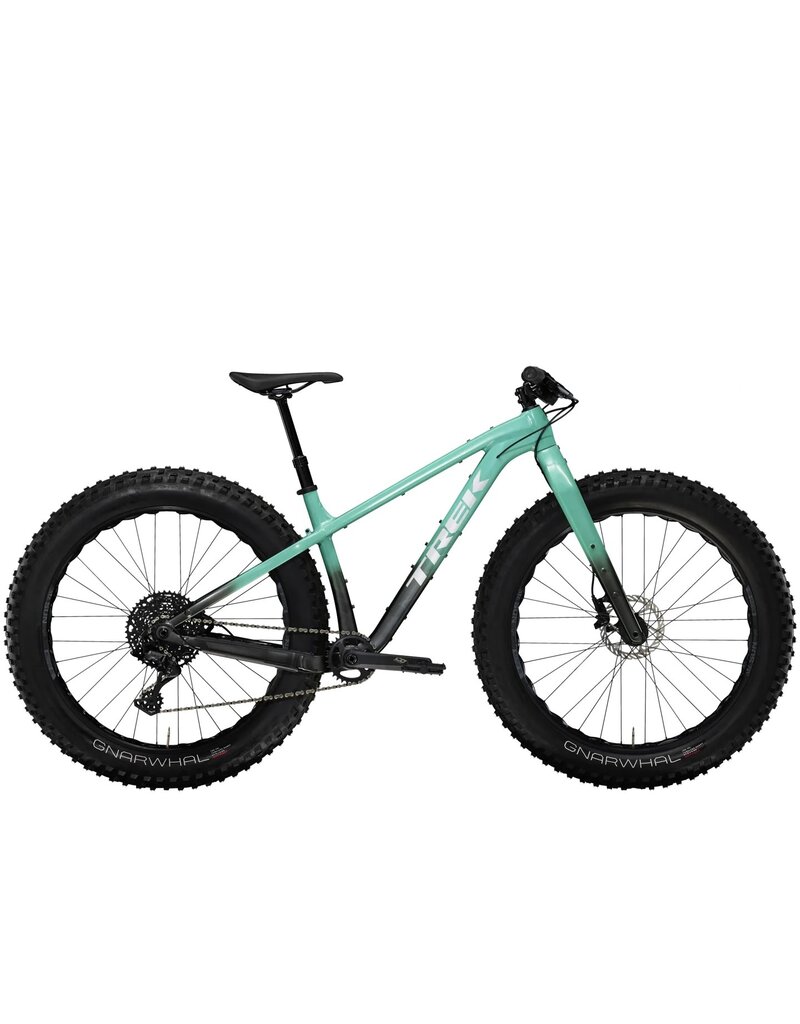

Farley 5 is the ultimate go-anywhere fat bike. Arctic tundra? Farley's game. Sandy desert singletrack? Farley's lofty tires will keep you afloat. A winter bikepacking mission through rugged terrain? Sounds like a walk in the park. Farley's geometry is more capable than ever with a slacker head tube angle for more stability and a steeper seat tube angle for pedaling efficiency and comfortable reach. Up front, its carbon fork is loaded with tons of mounts, so you'll be able to load up gear for the adventure of your dreams.
Frame | Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, threaded BB, UDH, 197x12mm |
---|---|
Fork | Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle |
Max compatible fork travel | 80mm (492mm axle-to-crown) |
Hub front | Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle |
---|---|
Skewer front | Bontrager Switch thru axle, removable lever |
Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle |
Skewer rear | Bontrager Switch thru axle, removable lever |
Rim | SUNRingle Mulefut 80 SL, 32-hole cutout |
Tire | Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'' |
Max tire size | 27.5x4.50" |
Shifter | microSHIFT Advent X SL-M9605, 10 speed |
---|---|
Rear derailleur | microSHIFT Advent X RD-M6205AM, 48T max cog |
*Crank | Size: S, M, L FSA Comet, 30T, 170mm length |
Size: XL FSA Comet, 30T, 175mm length |
|
Bottom bracket | FSA BB-7100, 100mm, BSA threaded |
Cassette | microSHIFT Advent X, 11-48, 10 speed |
Chain | KMC X10, 10 speed |
Pedal | VP-536 nylon platform |
Max chainring size | 1x: 32T |
Saddle | Bontrager Verse P3, steel rails |
---|---|
*Seatpost | Size: S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
Size: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
|
Size: L, XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length |
|
Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Grips | Bontrager XR Trail Comp, nylon lock-on |
*Stem | Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Size: L, XL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
Brake | SRAM Level hydraulic disc |
Brake rotor | Avid G2 CleanSweep, 6-bolt, 160 mm |
Brake Set | SRAM Level hydraulic disc |
Rotor size | Max brake rotor sizes: 180mm front & rear |
Weight | M - 16.20 kg / 35.72 lbs (with tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
