Trek Checkpoint SL 5 AXS Gen 3 2025

C$4,299.99
Availability: In stock

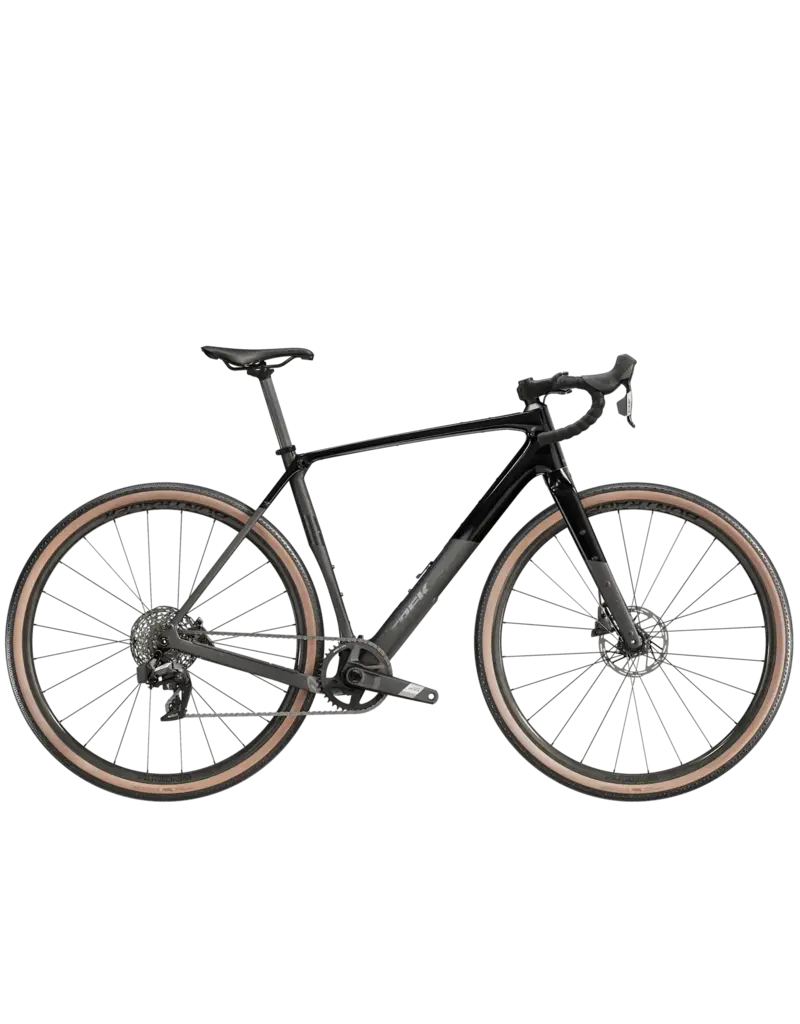

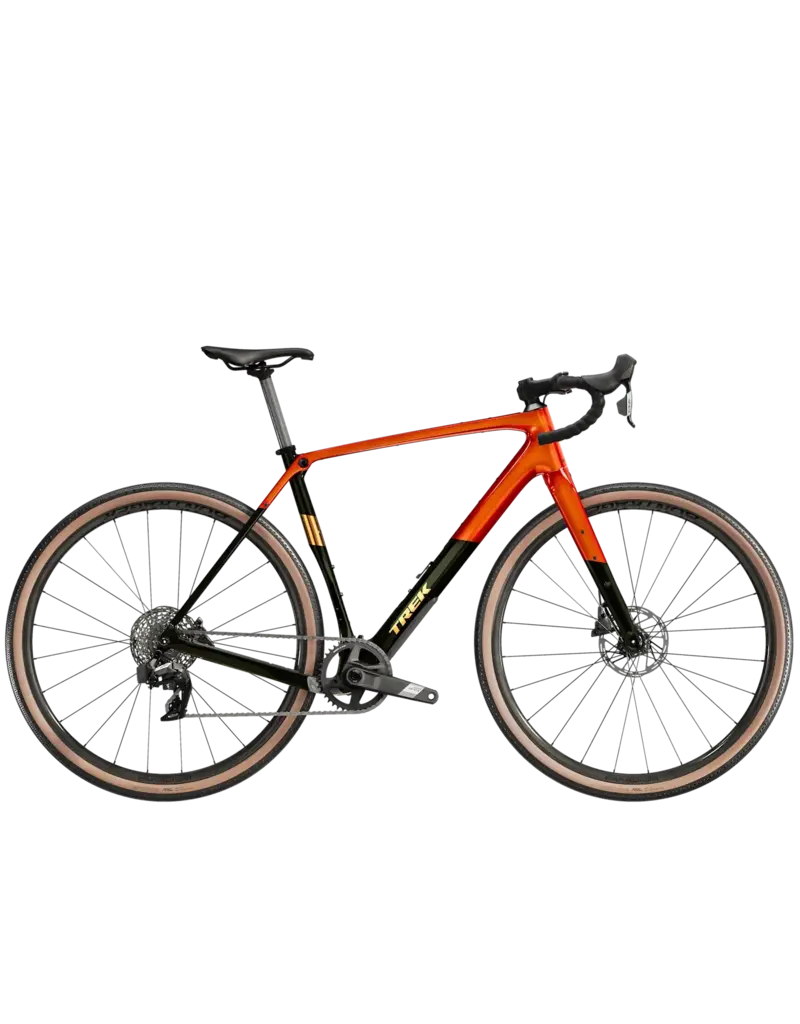

Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50mm tires (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It comes equipped with a wireless 12-speed SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

Frame 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Fork Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Max compatible fork travel 40 mm (XS: compatible with rigid fork only)
Weight
Weight ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
Battery SRAM eTap battery pack (with charger)
Drivetrain
*Shifter Size: XS, S, M, ML, L, XL
SRAM Apex, 12 speed
Size: XS, S, M, ML, L, XL
SRAM Apex AXS, 12 speed
Rear derailleur SRAM Apex XPLR eTap AXS, 44T max cog
*Crank Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: M
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Size: XL
SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket SRAM DUB, T47 threaded, internal bearing
Cassette SRAM XPLR PG-1231, 11-44, 12 speed
Chain SRAM Apex, 12 speed
Max chainring size 1x:44 2x: 46/30
