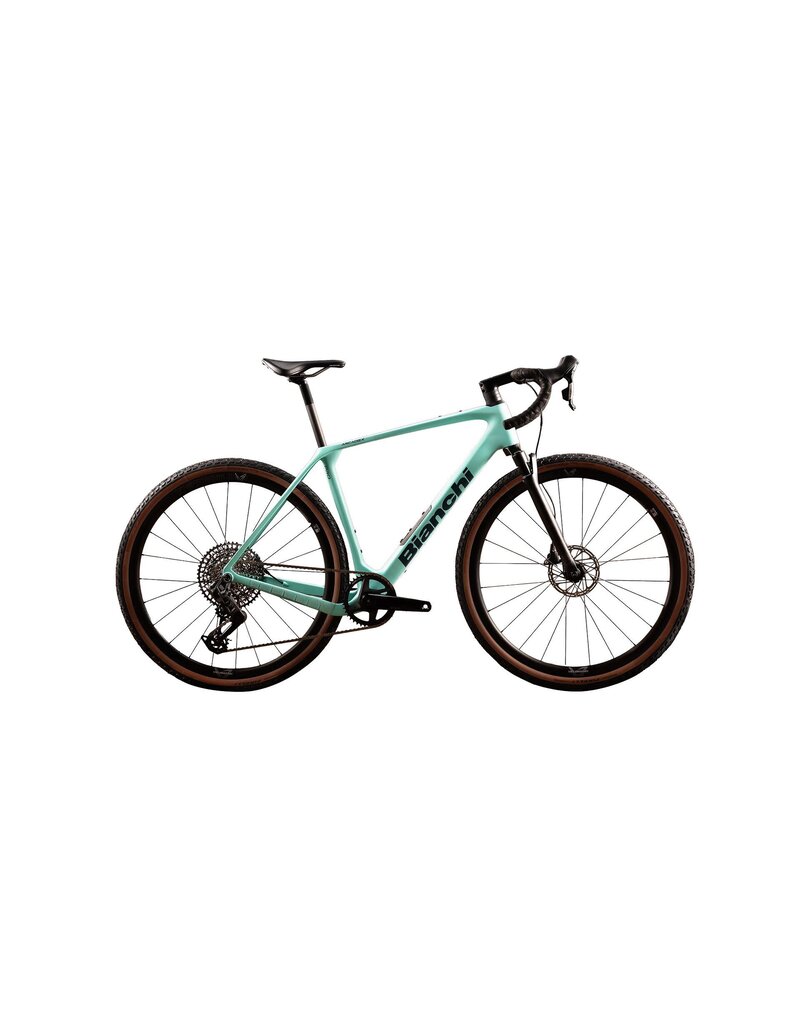

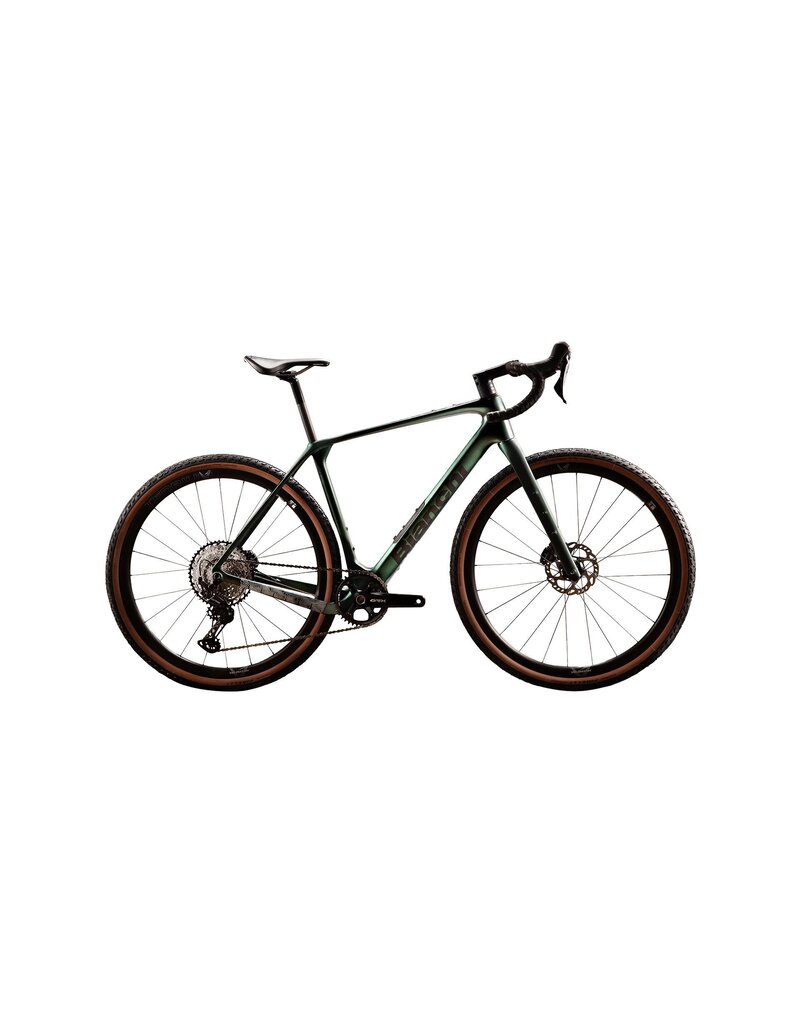

Bianchi Arcadex Pro - APEX/GX eTap AXS 2025

C$6,599.99
Availability: Out of stock
  • Frameset

    1. Frame

      Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
    2. Fork

      Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
    3. Headset

      Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
  • Drivetrain

    1. Shifters

      Shimano GRX 820 ST/BL-RX820
    2. Rear Derailleur

      Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
    3. Crankset

      Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
    4. Bottom Bracket

      Shimano SM-BB72-41B, press fit
    5. Chain

      Shimano CN-M7100
    6. Cassette

      Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
  • Brakes

    1. Brakes

      Shimano Hydraulic Brake, BR-RX820
    2. Rotor

      Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
  • Wheels

    1. Wheels

      Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
    2. Tire

      Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
  • Cockpit

    1. Stem

      Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
    2. Handlebar

      Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
    3. Grips

      Bianchi Hexagon tape 2.5mm thickness, Full black
  • Saddle

    1. Seatpost

      Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
    2. Saddle

      Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2
